Monsoon CCFL Inverter Rev. 2 – Four Bulb

Motivation

When I originally purchased the components for the reservoir, I bought enough CCFL to light the entire length of the tube. Unfortunately, the tube was much taller than my reservoir mounting plate; so I opted to only use the CCFLs in the middle of the tube where the mounting brackets could fit.

I also purchased the Monsoon CCFL Inverter that was designed to handle all the bulbs - so it is currently overkill.

Unboxing

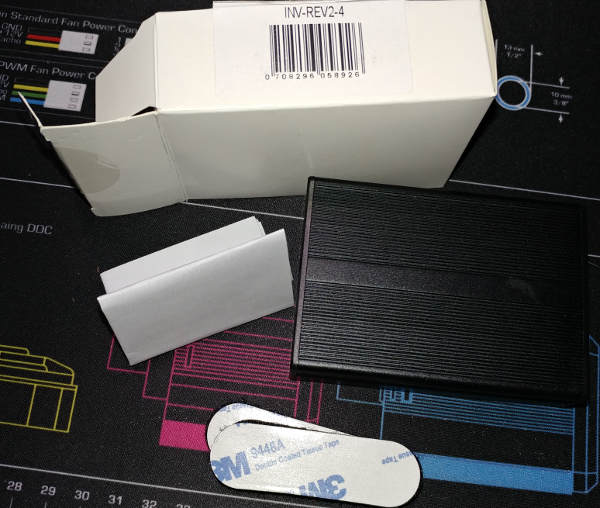

Unboxed

In addition to the sealed box and the documentation is some velcro tape.

Install

Using the velcro, I attached the inverter to the mounting plate under the Phobya Splitters.

Mounted

I attached the two leads from the central CCFL lights to the box and (eventually) attached the SATA power on the other side.
